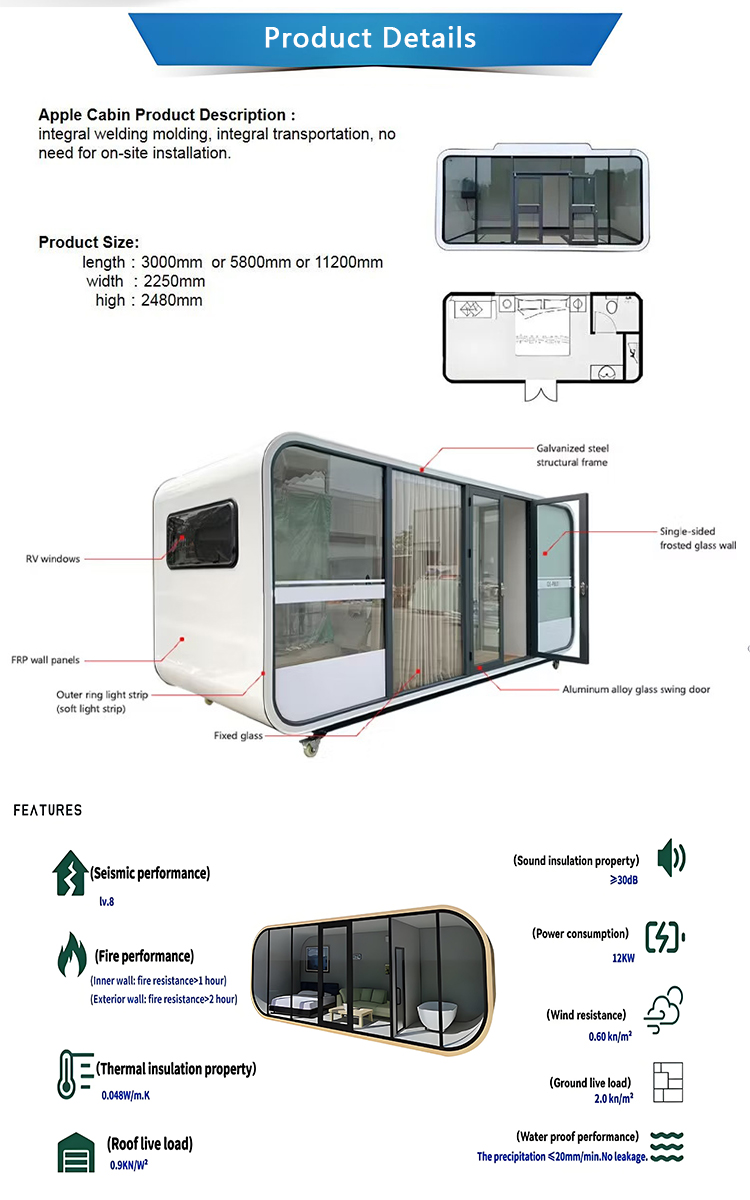

| APPLE CABIN MOBILE ROOM CONFIGURATION LIST | ||
|---|---|---|
| SIZE |

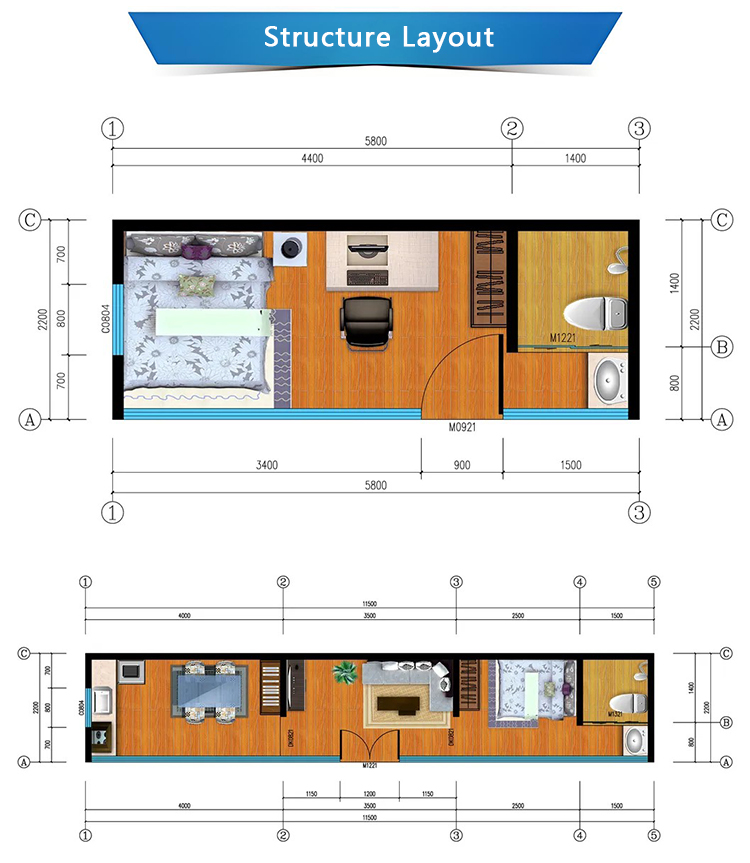

20ft: 5800mm * 2150mm * 2450mm 40ft: 11800mm * 2150mm * 2450mm Other sizes can be customized |
|
| MAIN FRAME | Galvanized square tube | 100mm * 100mm * 2.5mm, 50mm * 100mm * 1.5mm |
| Wall | 40mm * 60mm * 1.2mm, 30mm * 50mm * 1.2mm Horizontal spacing not less than 40cm, diagonal braces added to corner columns |
|
| Doors and windows | The window is reinforced with 40mm * 80mm * 1.5mm square tubes | |
| Roof | The roof is reinforced with 50mm * 100mm * 1.5mm square pipes | |
| Elbow | Semi circular 100mm * 100mm * 2.5mm | |
| GROUND | Substrate | 18mm cement pressure plate (high-density) |
| Flooring | 10mm composite wood flooring (with baseboard) | |
| WALL | Exterior wall | 18mm metal carved board |
| Interior wall | 8mm Stone Plastic Plate | |
| Adhesives & Lines | External wall adhesive, internal wall adhesive, and internal wall corner lines | |
| HEAT PRESERVATION | Thickness Options | 5 / 7.5 / 10 / 12.5 / 15cm thickness rock wool roll felt (with tin foil paper) Insulation level (R: 3.2) |
| GLASS | Specification | 5+12+5 hollow tempered glass |
| GENERAL CONTROL | Leakage protection | Circuit breaker power-off protection |
| Internal Wiring | Main line 6 square meters, equipped with 16A socket | |
| Socket | Three hole / five hole sockets, switches (single / double opening) | |
| Lamps | LED ceiling / line lights, and tube lights can be optionally added | |
| BATHROOM | Water supply and drainage pipes, partitions, aluminum alloy doors, toilets, showerheads, washbasins, and bathtubs (wet dry separation) | |
| TERRACE | Galvanized square tube | 100mm * 100mm * 2.0mm, 50mm * 100mm * 1.5mm, 40mm * 60mm * 1.2mm, 30mm * 50mm * 1.2mm |
| Ground | Wood plastic board | |

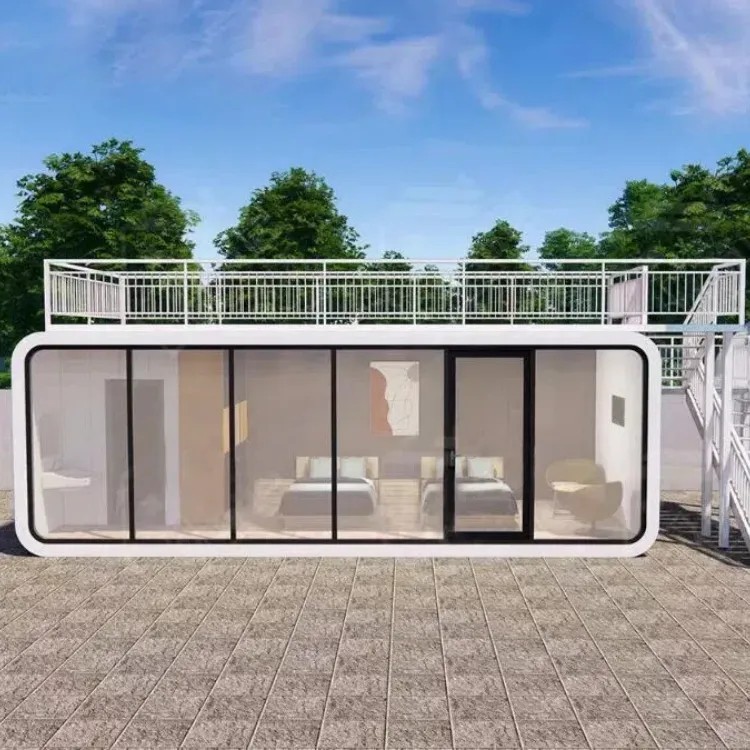

| STAIRCASE | There are three options available: straight stairs, corner stairs, and spiral stairs | |
We provide very detailed installation instruction drawings and videos for every project. For large projects, we will have both installation workers and supervisors on site. The fee for the on-site service should be negotiated with clients.
Normally, delivery time is 15 days after deposit received. For large orders, the delivery time should be negotiated.
a. Quality of the design: Think about possible problems in advance and provide a high-quality design solution.
b. Quality of the raw material: Choose the qualified raw material.
c. Quality of the production: Precise manufacturing technique, experienced workers, strict quality inspection.
Warranty is 2 years. Within the warranty period, we will be responsible for all quality problems caused by our production.
Under conventional climate and environment, the service life of container house steel frame is 20 years.
Strong wind region: Improve the wind-resisting ability of the internal structure.
Cold region: Increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
High corrosion region: Use corrosion resistant material, or paint anticorrosive coating.
