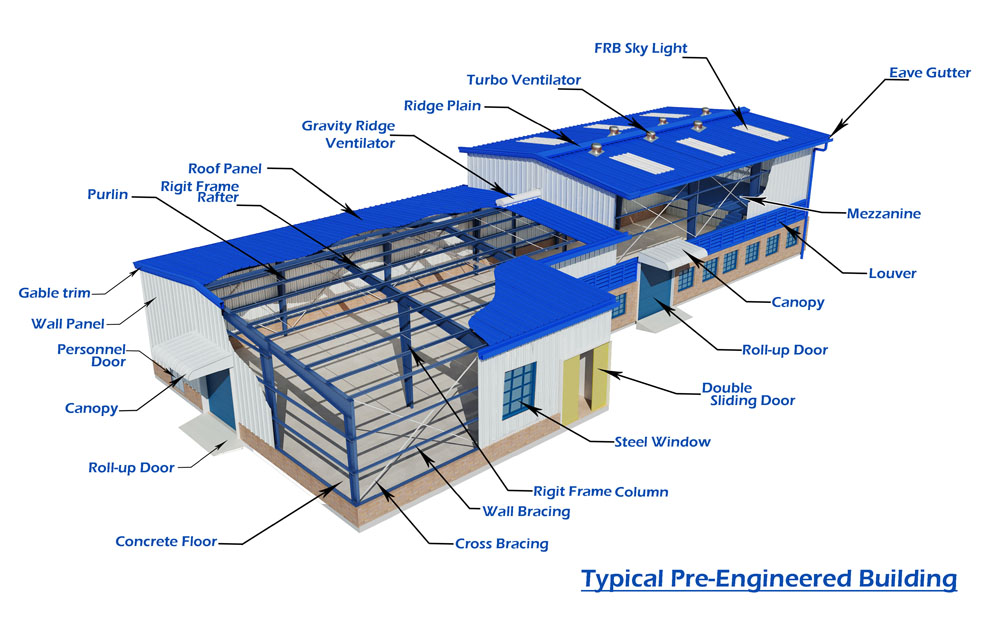

| 1) Size: | MOQ is 100 sqm, width x length x eave height, roof slope |
| 2) Span: | 9-180m, type: single slope, double slope, multi slope; single span, double span, multi span; single floor, double floor, multi floors |
| 3) Height: | 3-10m |
| 4) Slope: | 1/20, 1/10, 1/5, 1/3 |
| 5) Column distance: | 6-9m |
| 6) Base: | Cement and steel foundation bolts |
| 7) Column and beam: | Material Q345(S355JR) or Q235(S235JR) steel, all bolts connection. Straight cross-section or Variable |
| 8) Bracing: | X or V or other type bracing made from angle, round pipe, etc. |
| 9) C or Z purlin: | Size from C120~C320, Z100~Z200 |
| 10) Roof and wall panel: | Single colorful corrugated steel sheet 0.2~1.2mm thick, such as YX25-207-828 or sandwich panel with EPS, ROCK WOOL, PU etc. insulation thickness around 50mm~150mm, YX40-320-960 |
| 11) Accessories: | Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc. |
Please provide the following design criteria parameters to get an accurate quotation:
* Sharing your own drawings will speed up the quotation process.
