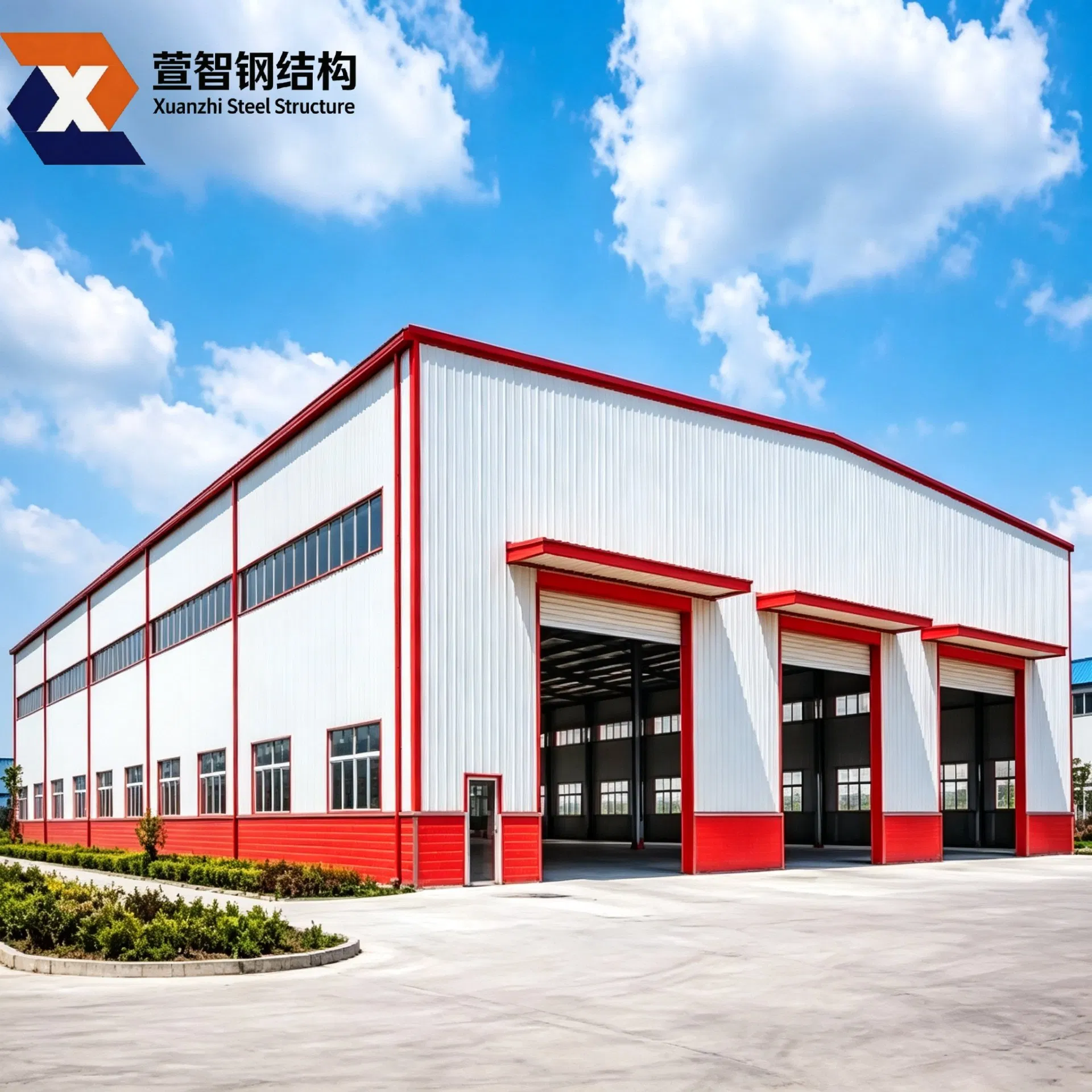

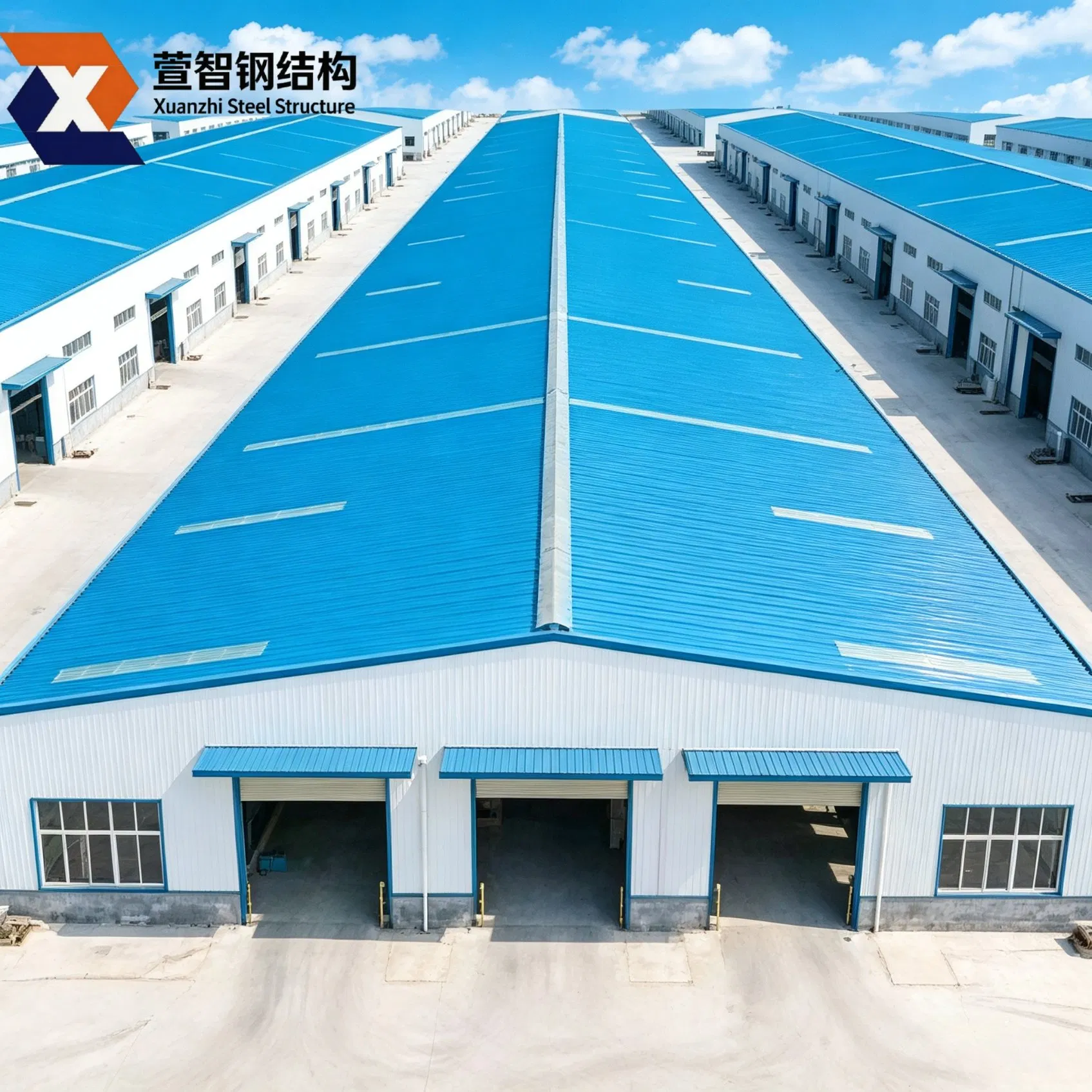

With professional knowledge, rich experience, to provide the most suitable solutions. We focus on the research and development of steel structure buildings, constantly innovate and improve the wind and rain resistance performance, extend the life-span as much as possible, so that realize the long-term investment value for customers. When planning your industrial building project, choosing prefabricated steel structure is the wisest decision. It outperforms traditional concrete and wood construction in all key aspects including speed, cost, space and durability.

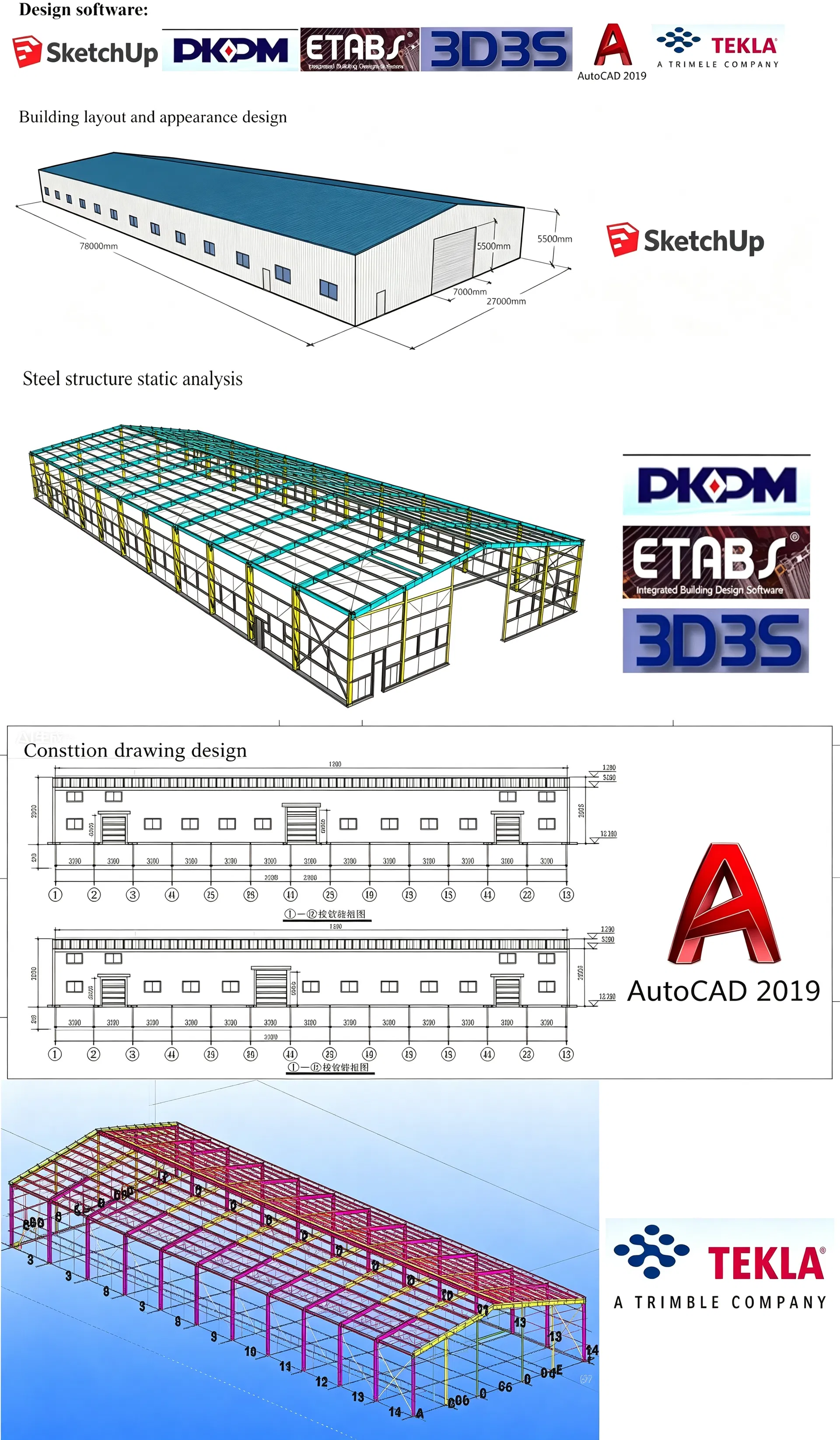

Customized design and static analysis can be provided according to the concept proposed by customers and strictly in accordance with the national design code. Also they can be produced according to the drawing from customer.

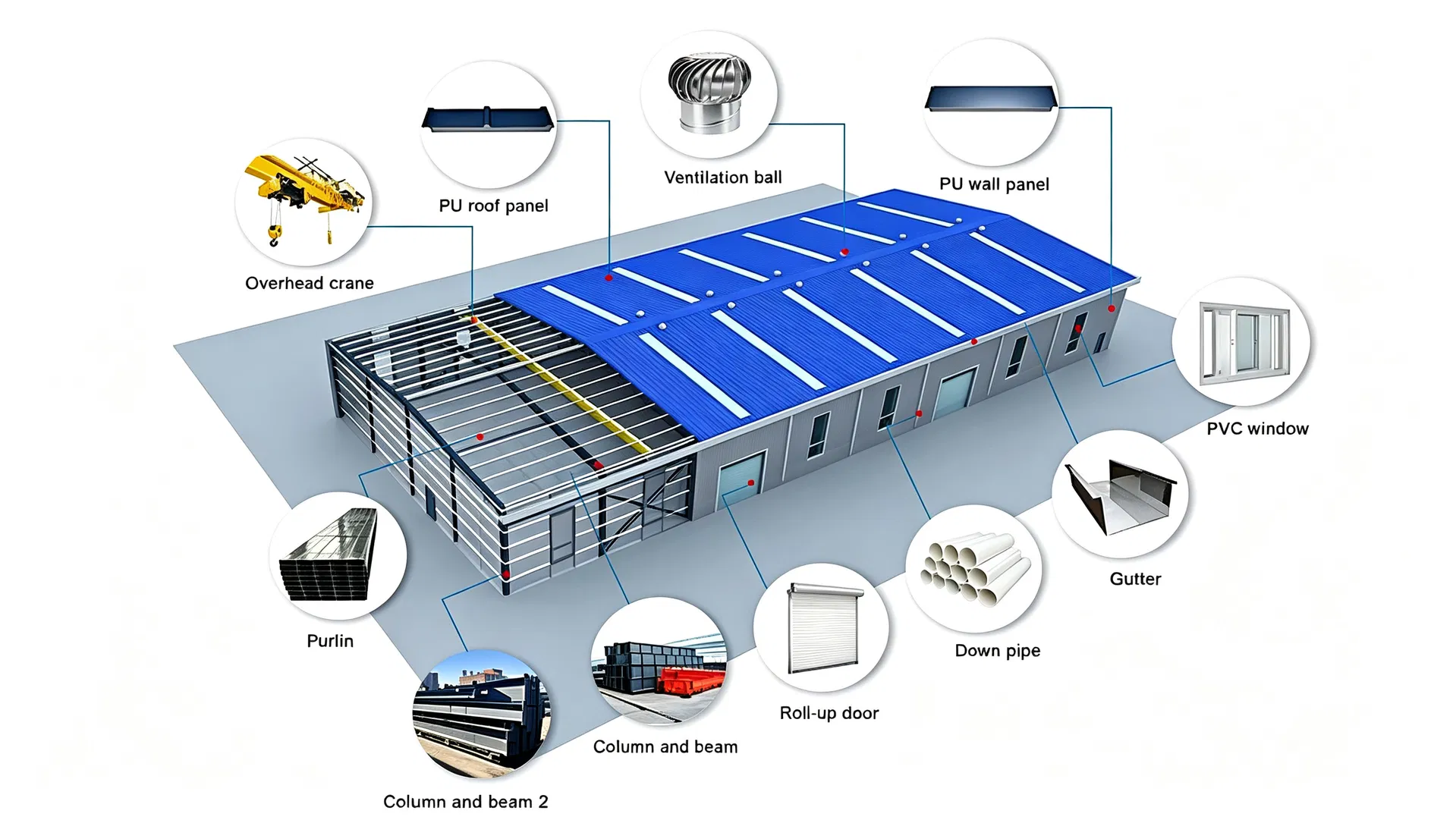

| Component / Property | Details & Options |
|---|---|

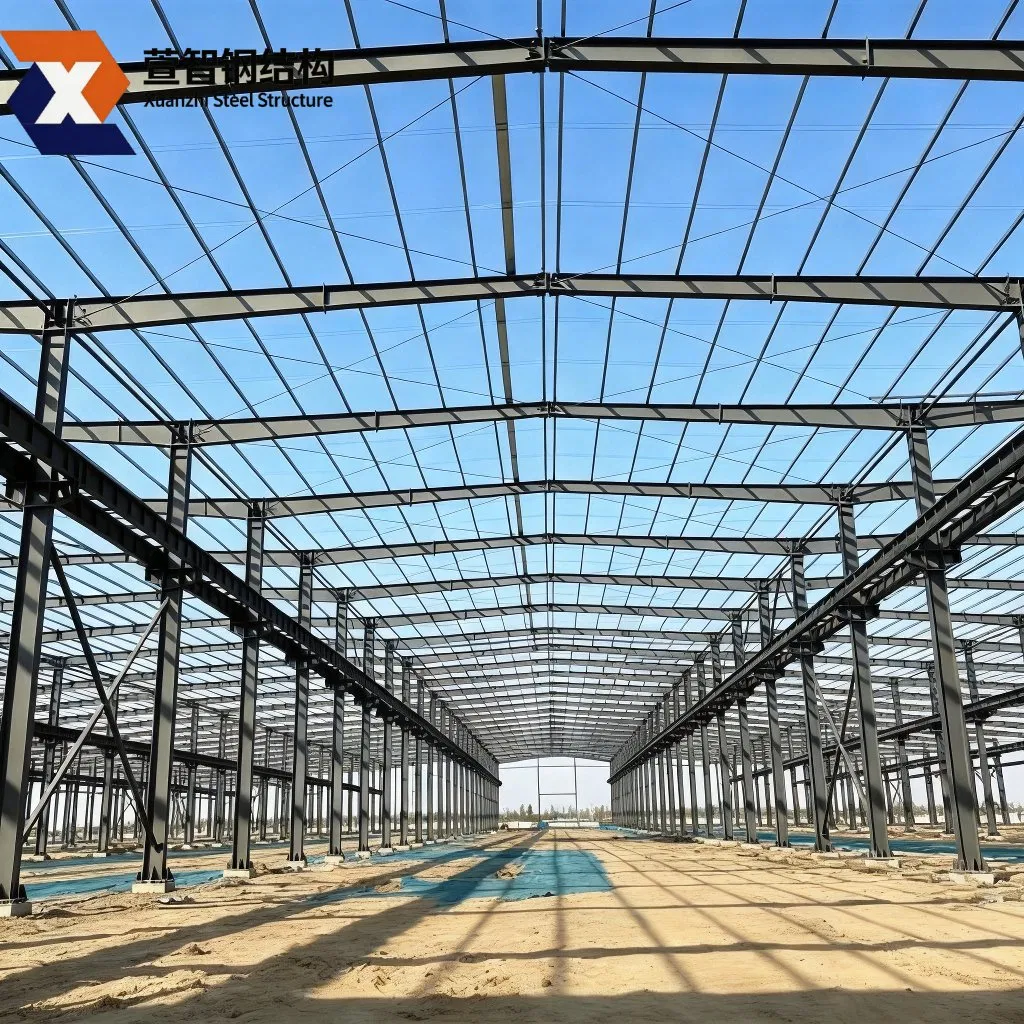

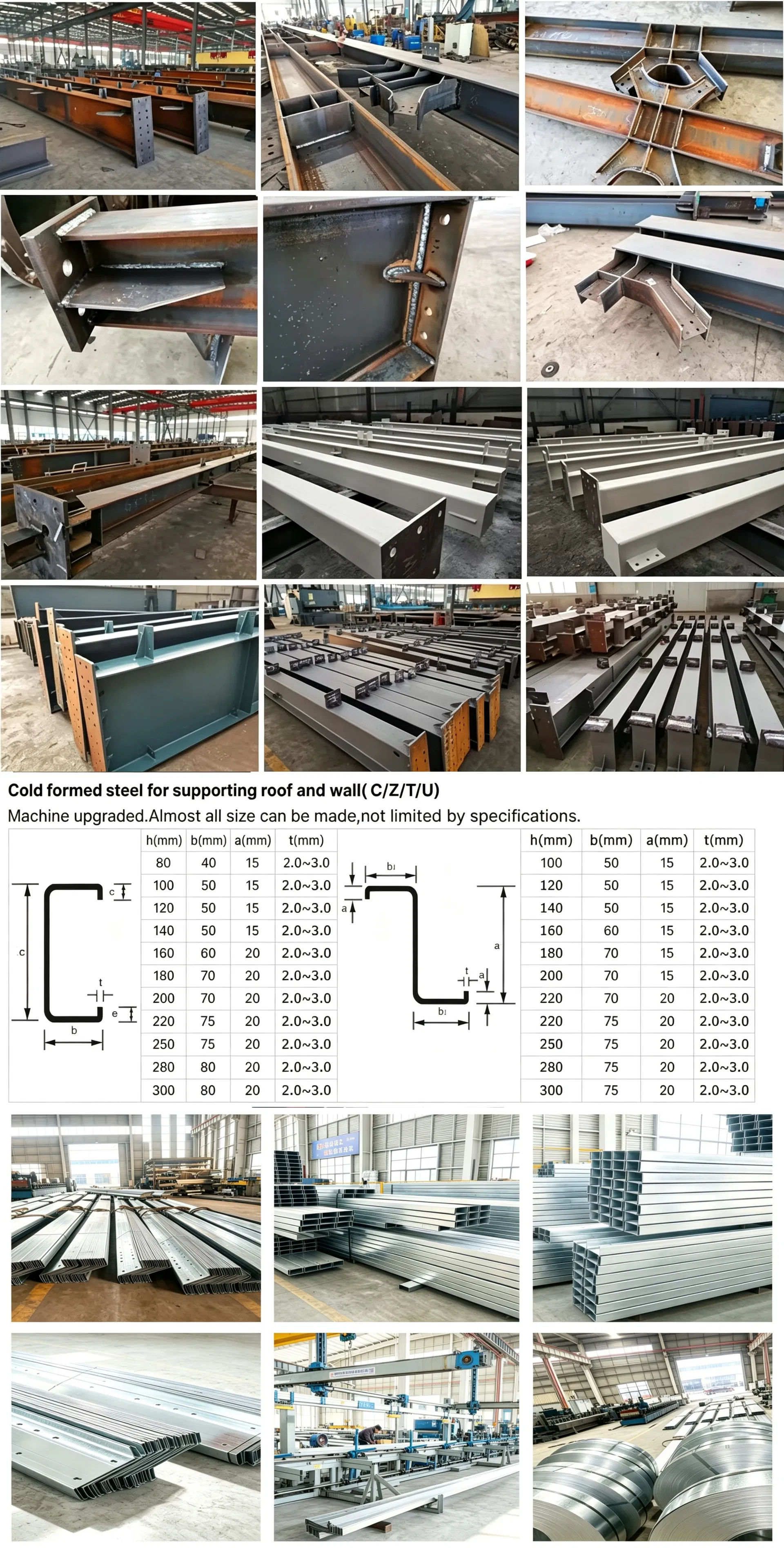

| Main Steel Structure (Columns & Beams) | 1. Material: Q235B / Q355B (S235JR / S355JR) H-section carbon steel 2. Cross-section: Straight / Variable cross-section, fully customizable 3. Finish: Hot-dip galvanized or anti-rust painted, compliant with GB/ASTM/EN standards |
| Secondary Steel Structure | 1. Material: Q235B carbon steel 2. Connections: Bolted (welded optional), with anti-rust treatment 3. Bracing: X-type / V-type angle or round pipe bracing 4. Purlin: C/Z type, sizes C80~C320 / Z120~Z300 |

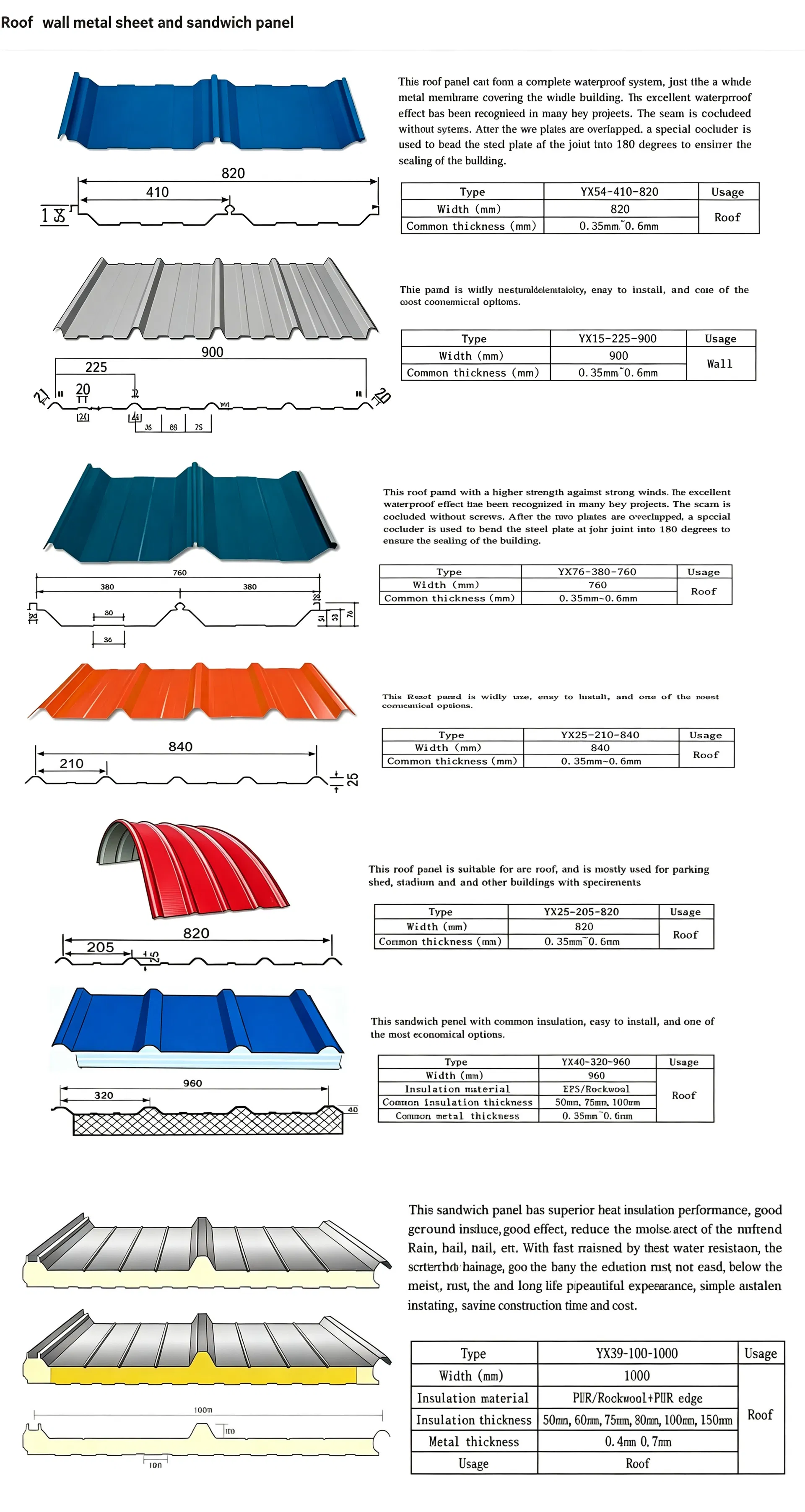

| Roof System | 1. Option 1: Single-layer color steel sheet (hot-dip galvanized, anti-corrosion) 2. Option 2: Insulated sandwich panel (core: PU/EPS/rock wool/fiberglass) 3. Features: Leak-proof seam design, suitable for coastal/high-humidity areas |
| Wall System | 1. Option 1: Single-layer color steel sheet (hot-dip galvanized) 2. Option 2: Insulated sandwich panel (core: PU/EPS/rock wool/fiberglass) 3. Custom brick wall enclosure available per local building codes |
| Doors | Galvanized steel material, optional roller shutter door / sliding door / fire-rated door, customizable size |
| Windows | Aluminum alloy double-glazed window, energy-saving and anti-corrosion, customizable size |
| Edge Cover | 0.5mm thick color coated steel sheet (color steel plate), with hot-dip galvanized substrate + polyester coating, anti-rust, anti-corrosion and waterproof, compatible with the overall anti-corrosion system of color steel roof/wall panels, for enclosure seam sealing |
| Bolts & Fasteners | 1. High-strength galvanized bolts (Grade 8.8/10.9) 2. Embedded anchor bolts (M16~M24) for foundation connection 3. Special self-tapping screws for panel installation |
| Core Performance (Warehouse-Specific) | 1. Wind resistance: Grade 12 (120km/h) 2. Seismic resistance: Grade 8 3. Roof load capacity: Customizable (0.3~1.5kN/sq.m snow/equipment load) 4. Design service life: 50+ years |
| Optional Accessories | Skylight panel, roof ventilator, downspout, gutter system, crane beam, insulation upgrade, anti-corrosion coating |
| Foundation | Concrete foundation with embedded steel anchor bolts, customized to local soil conditions |
| Certifications | Compliant with ISO 9001, CE, EN 1090, AWS certifications, supporting global export |
With patented production technology ISO quality management system, all steel members with perfect welding and accurate dimensions, without any defect on the site to ensure the installation fast and easy.
The corrosion of steel can be considered as an electrochemical process that occurs in stages. It requires the simultaneous presence of water and oxygen. As long as either of the above conditions does not exist, corrosion will not occur. The purpose of anti-corrosion is to isolate oxygen and water. Simple and effective solution: metal coating and non-metal coating.

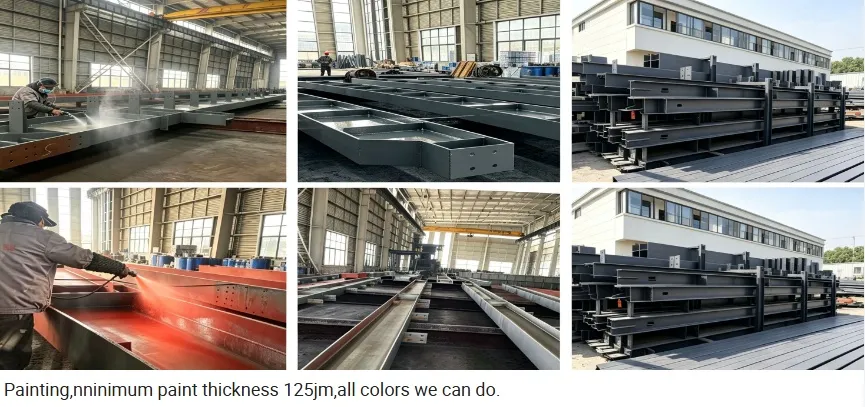

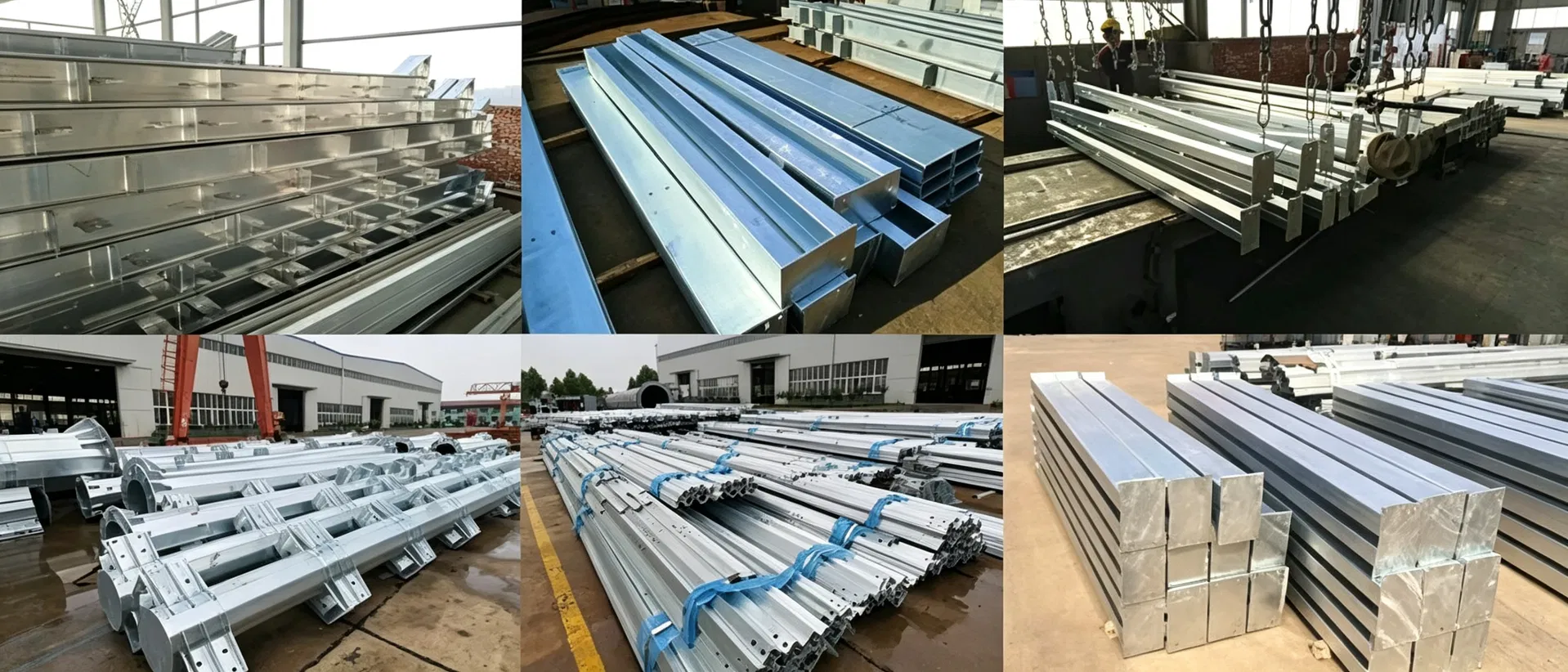

Hot-dip galvanized, our standard is that the average zinc thickness is not less than 85μm (606g/sqm). The maximum zinc thickness can be more than 100μm (713g/sqm).

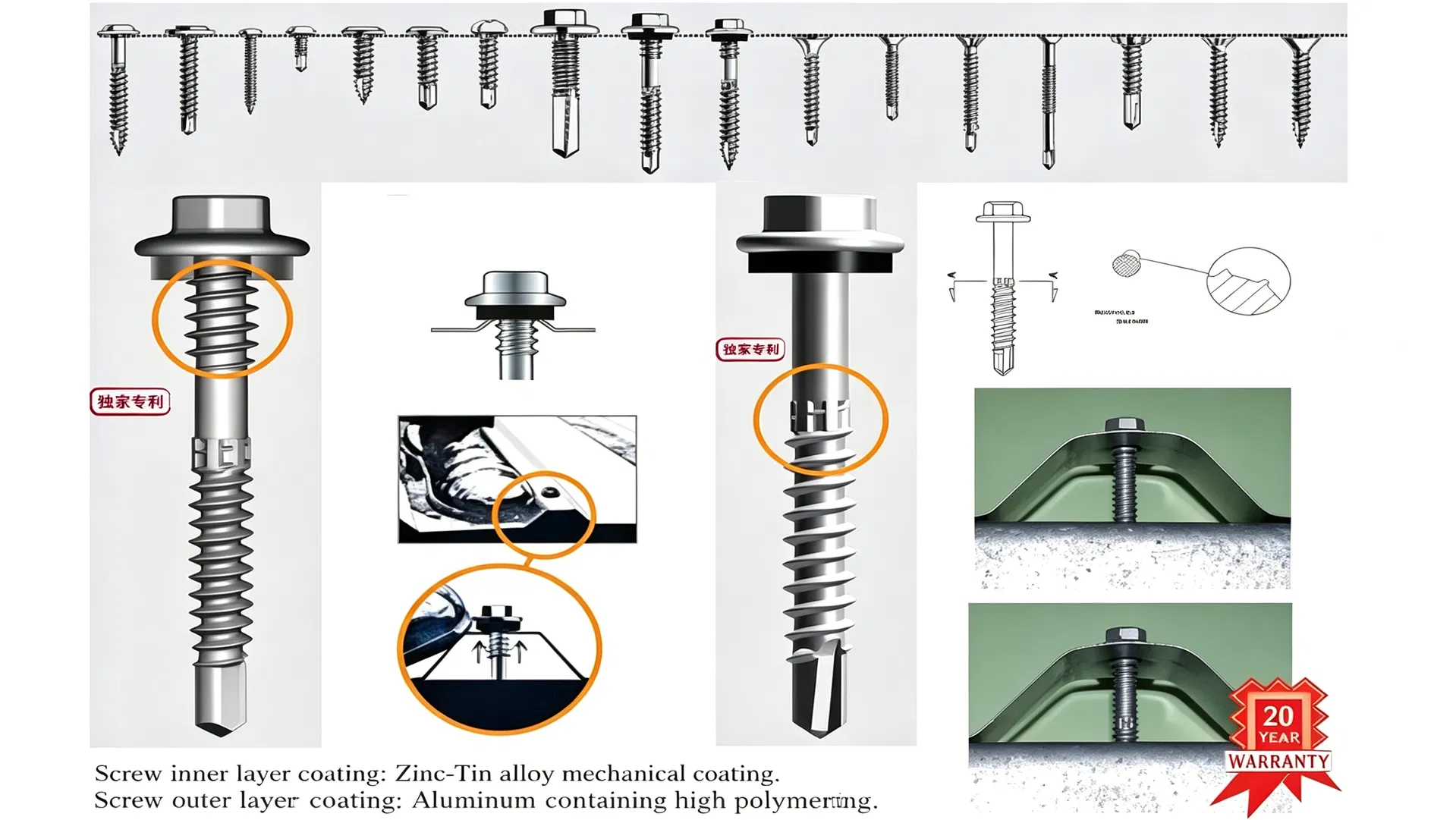

Screw----key point to your surprise.

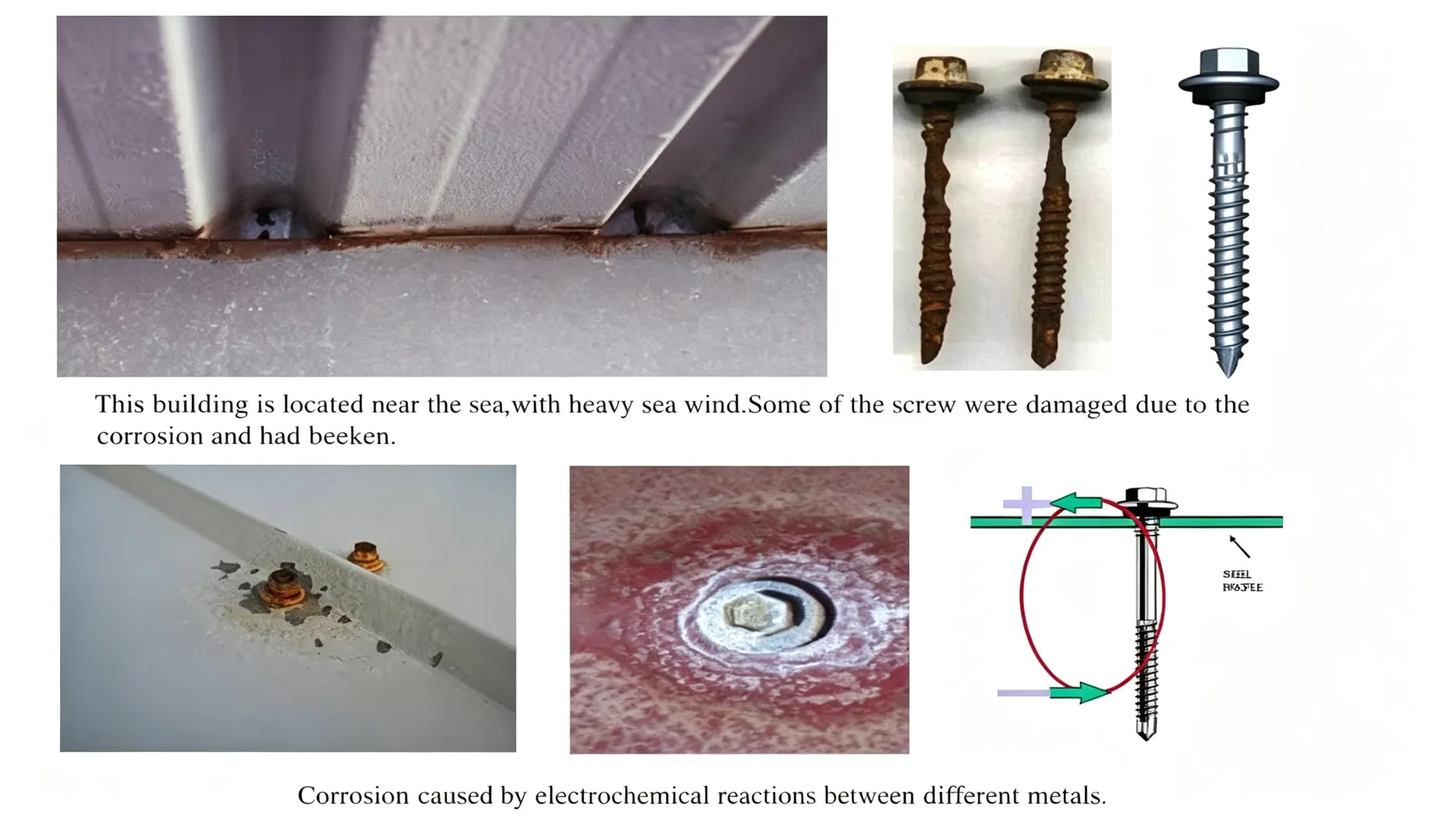

For a long time, fasteners have been the weak link of all building structure connection. It is not the design or performance problems, but the reduction of strength and the broken caused by corrosion over time.
Zinc-Tin alloy mechanical coating, patented and practical technology, with long-term excellent anti rust properties. (Maximum drill thickness: 12.5mm)

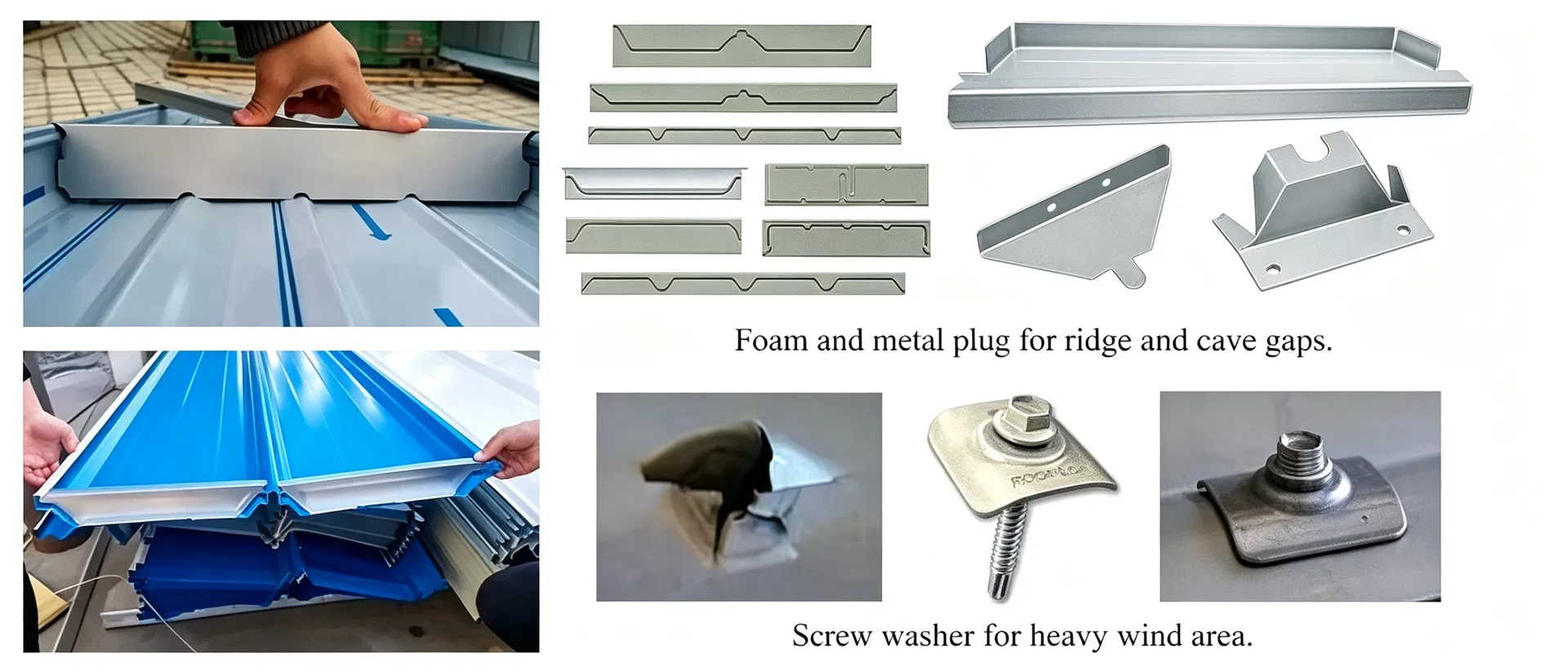

A building needs to be practical and also with beautiful appearance. We focus on every detail and connection, use a variety of accessories to make the connection strong and beautiful.

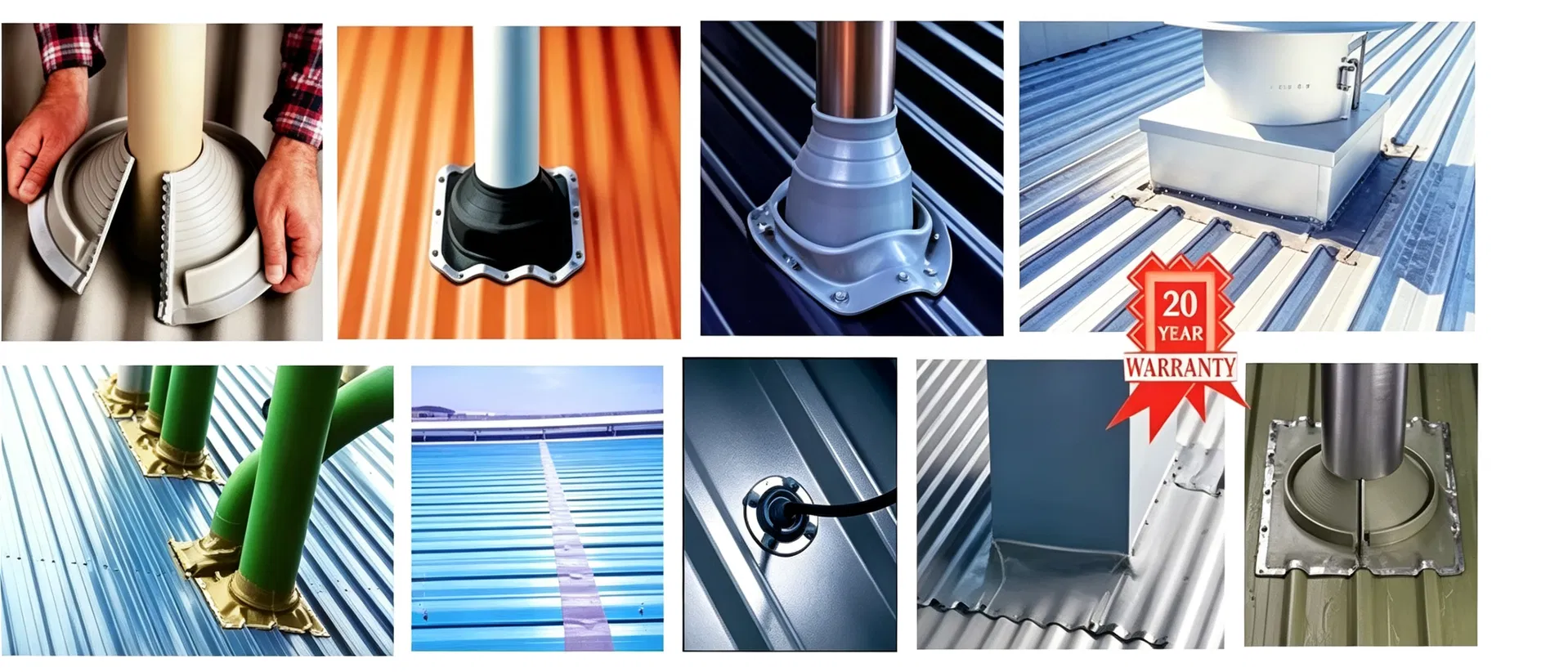

World class waterproof products for pipe/hole on roof or wall. EPDM or silicone and other flexible materials are used, with excellent physical and chemical properties, simple construction, reliable performance and no noise. The guaranteed service life is more than 20 years.

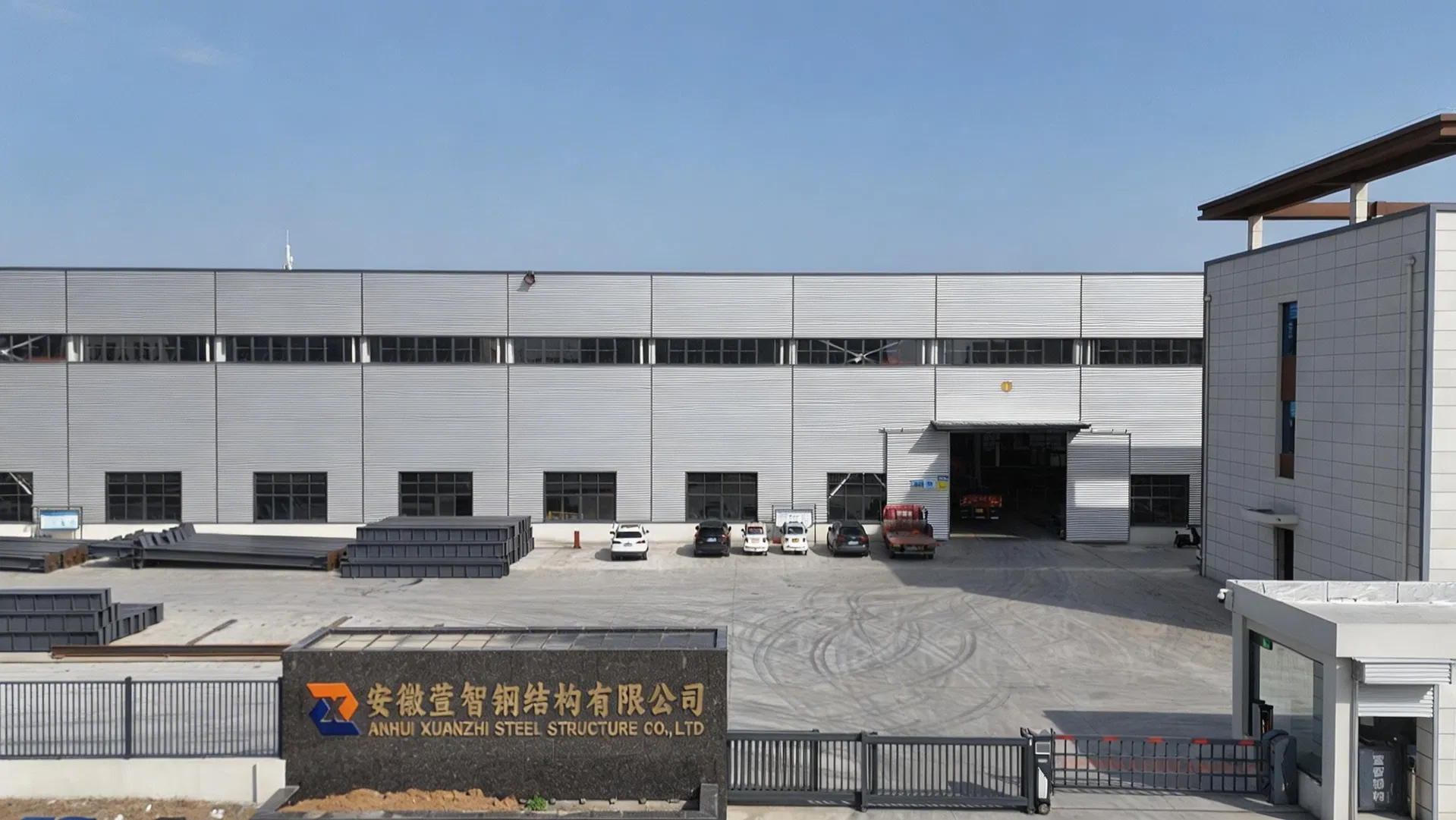

Our professional export-oriented steel structure enterprise integrates R&D, design, manufacturing and service, featuring a plant area of over 52,000 square meters. With more than 10 years of in-depth development in the industry, we are dedicated to providing global customers with cost-effective one-stop integrated solutions for steel structure projects.

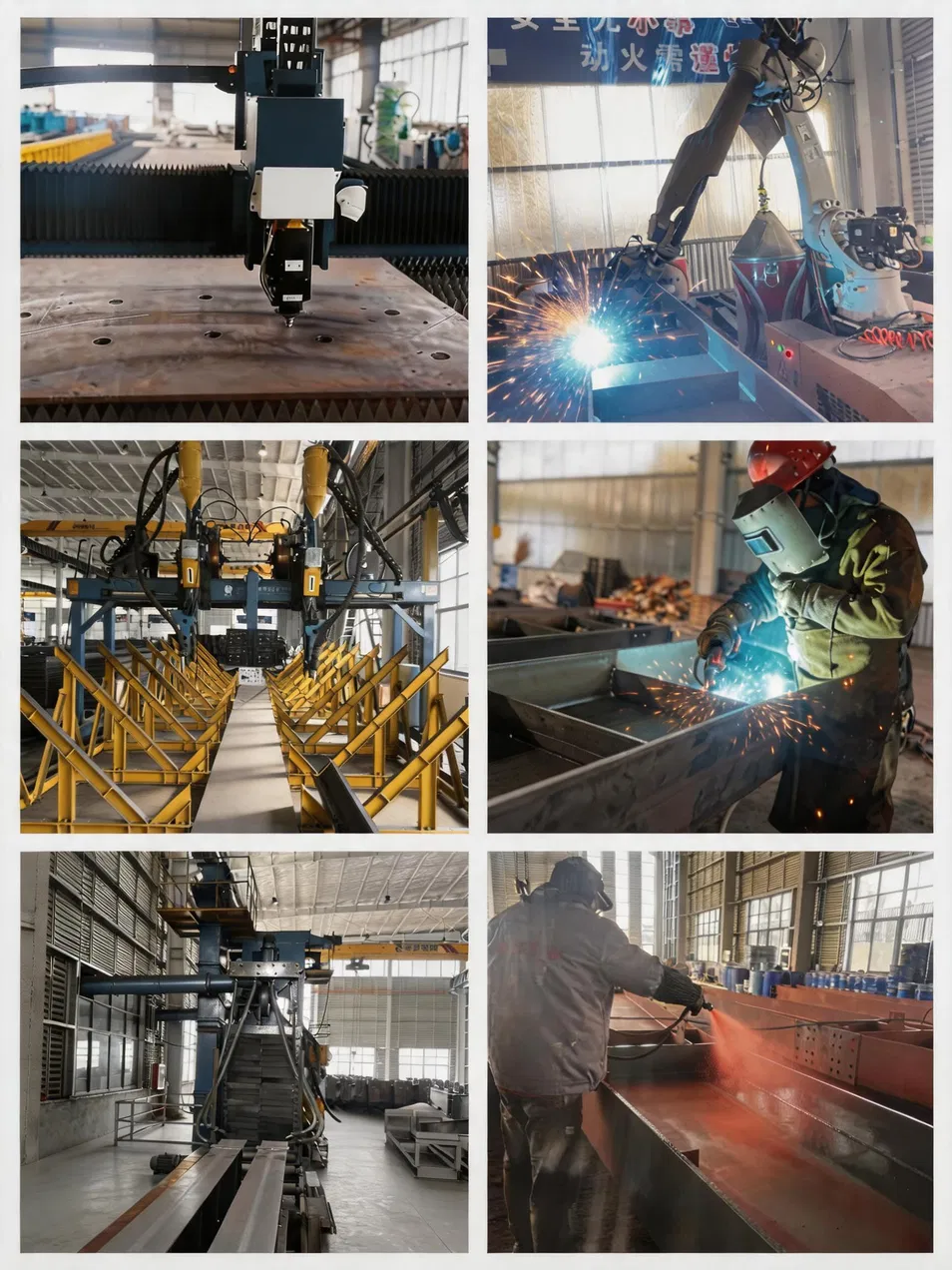

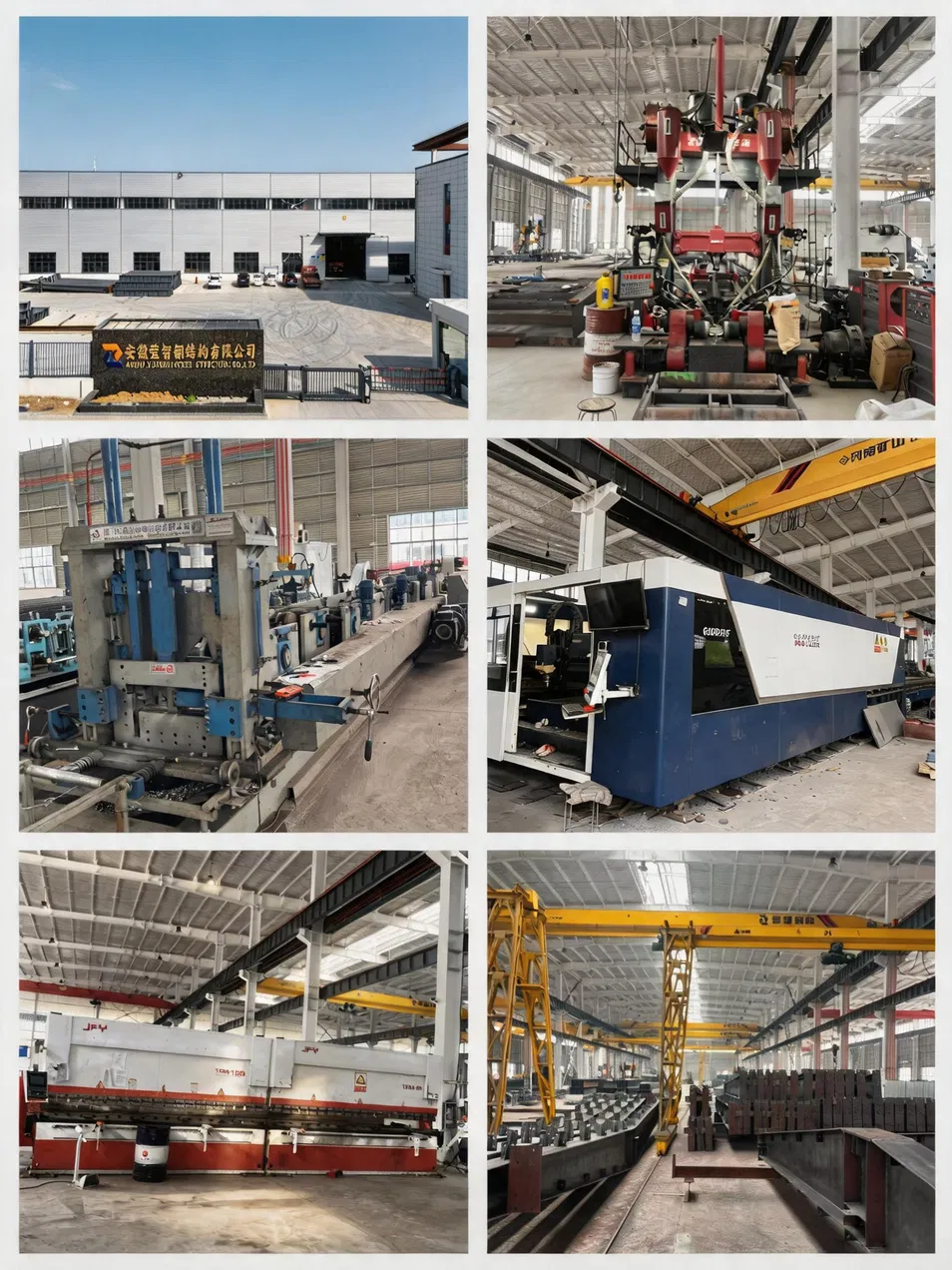

We operate a modern production base with an annual steel processing capacity of 100,000 tons. Relying on advanced production lines and a strict full-process quality control system, we guarantee stable delivery lead times and consistent superior product quality, and deliver highly competitive cost advantages to customers through our factory-direct sales model. We have a professional team with over a decade of hands-on experience in the prefabricated steel structure sector, supported by an academician workstation. We have mastered a number of core industry technologies and hold more than 200 patents, enabling us to provide full-cycle technical support for various types of projects.

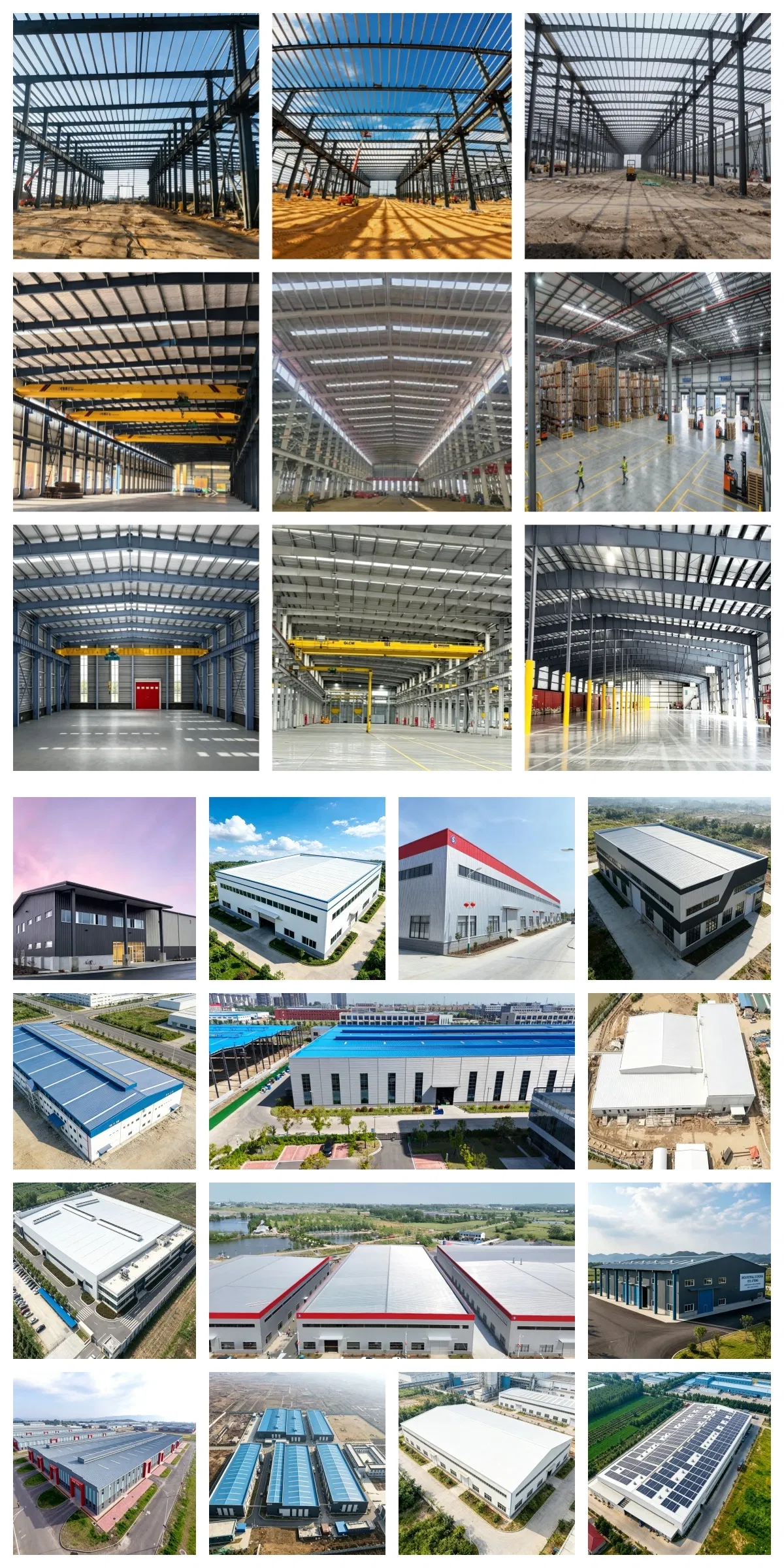

To date, we have completed over 100 benchmark projects in more than 30 countries worldwide. Adhering to the long-term brand development philosophy, we have established stable, long-term cooperative partnerships with numerous international enterprises, institutions and government agencies. Our core product portfolio covers a complete range of steel structure products, including industrial workshops, logistics warehouses, multi-storey and high-rise steel structures, long-span pipe trusses, and prefabricated modular buildings, which can fully meet the customized needs of diverse scenarios such as industrial, commercial and infrastructure construction. We provide a full one-stop service from design, manufacturing, global logistics and transportation, to on-site installation guidance and after-sales support.

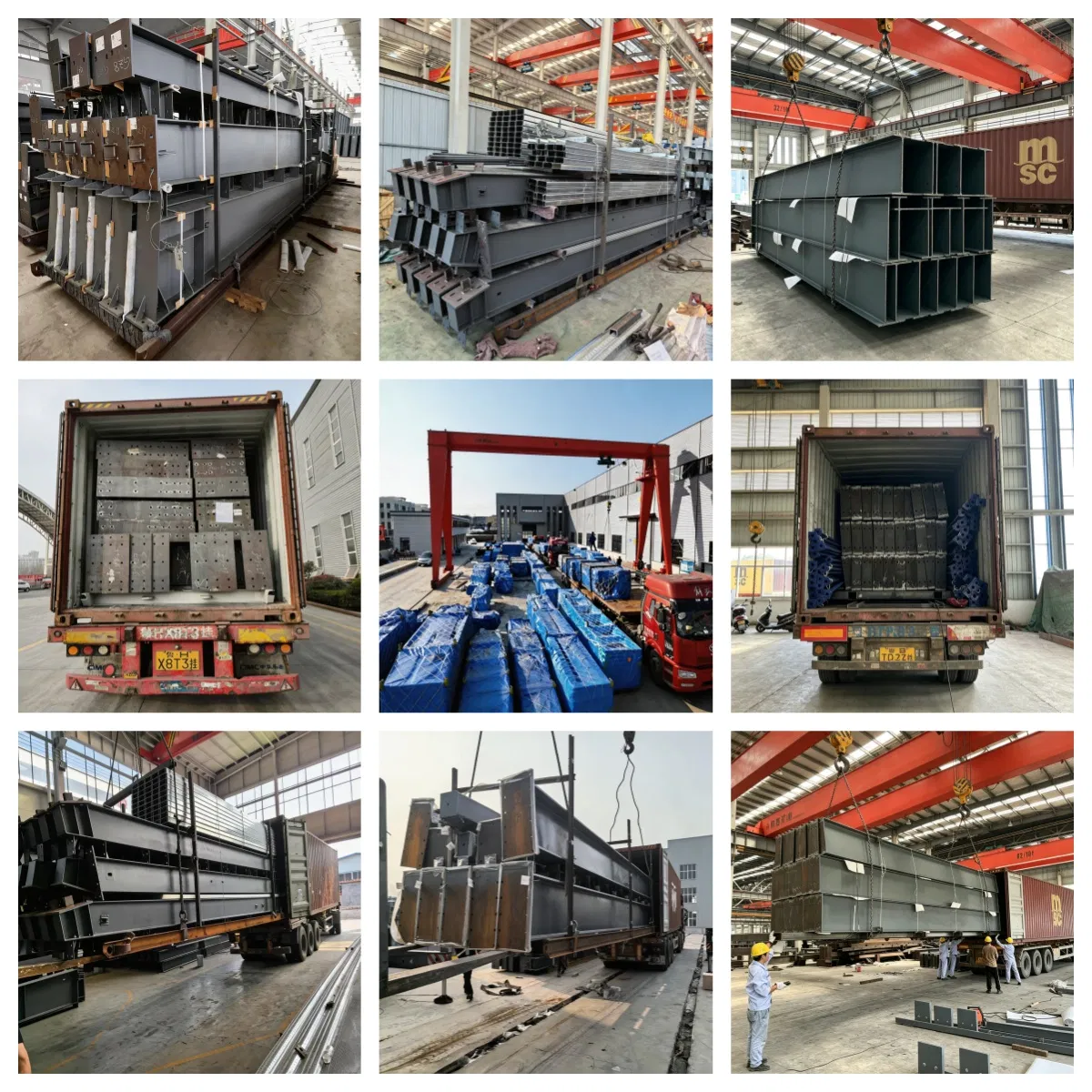

Steel components are moisture-wrapped and steel-strapped. Key parts are separately packed for collision and corrosion prevention in transit. Goods are sorted and loaded per installation order. Our logistics ensure stable delivery, with all components intact for swift unloading and setup.
